THE MAG BAY 43CC

THE MAG BAY 43 CENTER CONSOLE

Our Flagship Model

When we set out to build our flagship model, the 43 CC, we approached it with the same philosophy as our other boats - to build the highest quality boat on the water. Beautiful looks combined with a patented Cross-Step hull design deliver the ultimate in luxury and performance.

Since its launch in 2022, the Mag Bay 43 CC has proven to be the perfect balance of aggressive hull design with the fit, finish, and utmost level of craftsmanship that Mag Bay Yachts is known for. Equipped with a comfortable cabin and dual-row helm seating, there is plenty of seating and accommodation for long runs offshore or family cruising alike. Featuring our industry-leading stainless steel fabrication, custom hardware, and attention to detail, this boat features yacht-caliber finish work on a platform that runs like nothing else in its class.

CONTACT US AND
GET YOURS TODAY!

STANDARD FEATURES

    • 100% Vinylester Resin Construction

    • Gurit® Cored Hullsides, Solid Fiberglass Bottom

    • Unique “Unibody” Transom

    • Triple Reinforced Hull-Deck-Liner Joint Throughout Entire Boat

    • Fiberglass Molded Stringer Grid System For Added Strength

    • Premium Proprietary Gelcoat Used Throughout

    • 316 Stainless Steel Rubrail

    • 316 Stainless Bow And Stern Eyes

    • Starboard Side Inward Swinging Side Door With Folding Gunnel Gate

    • Custom Made 316 Stainless Steel Hinges On Anchor Locker And Side Door

    • Integrated Transducer Pocket For 2kw Transducer

    • Industry Leading Fully Glassed And Gelcoated Liner To Deck Joints

    • Self-bailing Deck With Outboard Gutters

    • Integrated Hatch Drain System To Outboard Gutters

    • Molded Toe Rail

    • Diamond Pattern Nonskid

    • Custom 316 Stainless Steel Motor Plate

    • Two Outboard 110 Gallon ¼” Aluminum Fuel Tanks

    • One Central 425 Gallon ¼” Aluminum Fuel Tank

    • 85 Gallon Freshwater Tank With Deck Fill On Console

    • 23 Gallon Holding Tank With Deck And Overboard Discharge Ports

    • 75 Gallon Pressurized Aft Livewell

    • 70 Psi. 6gpm Saltwater Washdown Pump

    • 50 Psi. 4gpm Freshwater Washdown Pump

    • Dometic Masterflush Electric Head With Freshwater Flush

    • Freshwater Sink Inside Console

    • Forward And Aft Freshwater And Saltwater Washdown Spigots

    • Dual Rule 2000gph Bilge Pumps In Aft Lazarette

    • Rule 1000gph Lo-profile Bilge Pump In Forward Console

    • Rule Float Switches

    • Macerator Pumps For All Fish Boxes

    • Whale Macerator Pump For Head

    • Dual Hooker Electric Sea Chest In Aft Lazarette

    • Hooker Electric Variable Speed Bait Tank Pump

    • Integrated Engine Flush From Reverso

    • All Thru Hulls And Ball Valves Are 316 Stainless Steel

    • Two In-Deck Forward Fish Boxes

    • Oversized Above Deck Insulated Console Storage With Drains To Deck

    • Bow Seating With Large General Storage Compartments

    • Oversized Insulated In-deck Forward Fishbox With Dedicated Macerator Pump

    • Oversized Self-draining Anchor Locker With Sealed Forward Crash Bulkhead

    • Mirror Inside Console

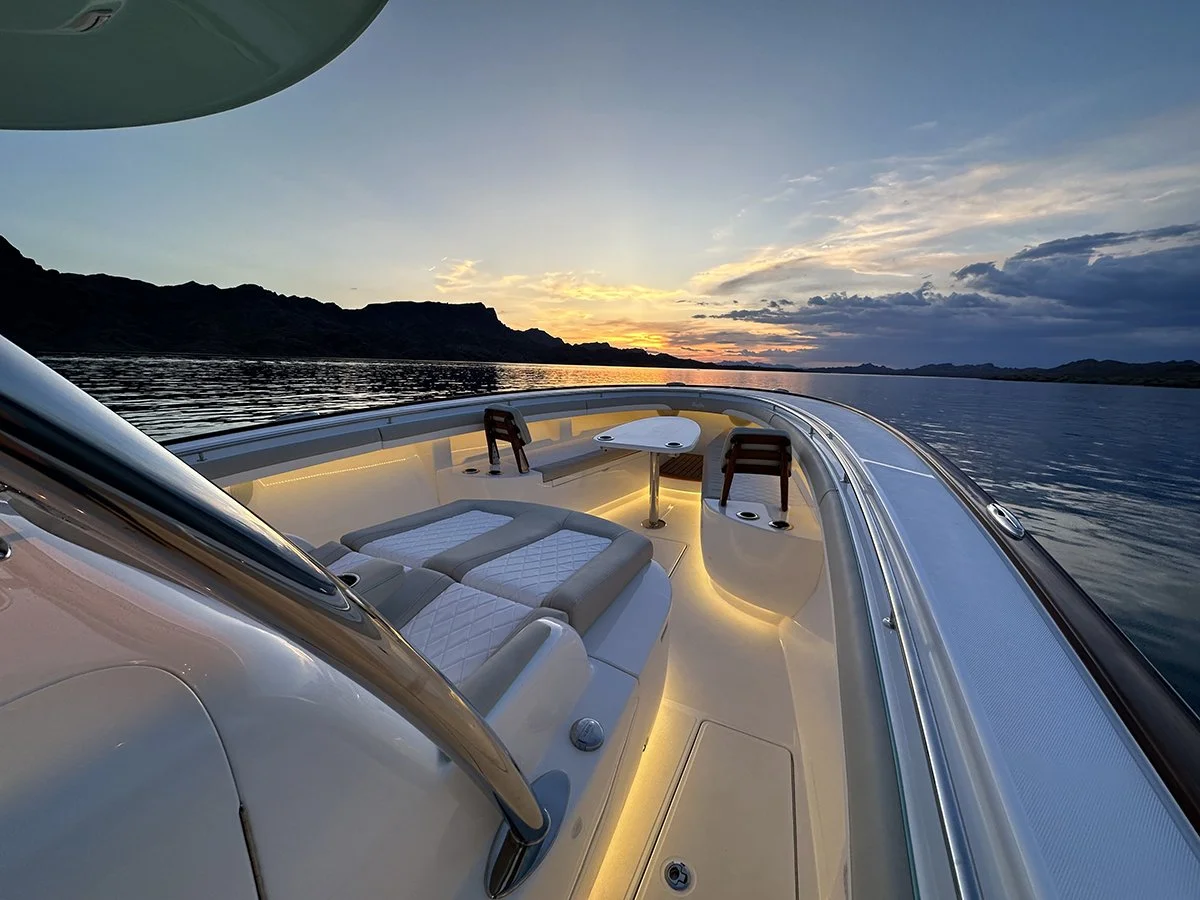

    • Forward Sunpad Console With Above Deck Insulated Storage

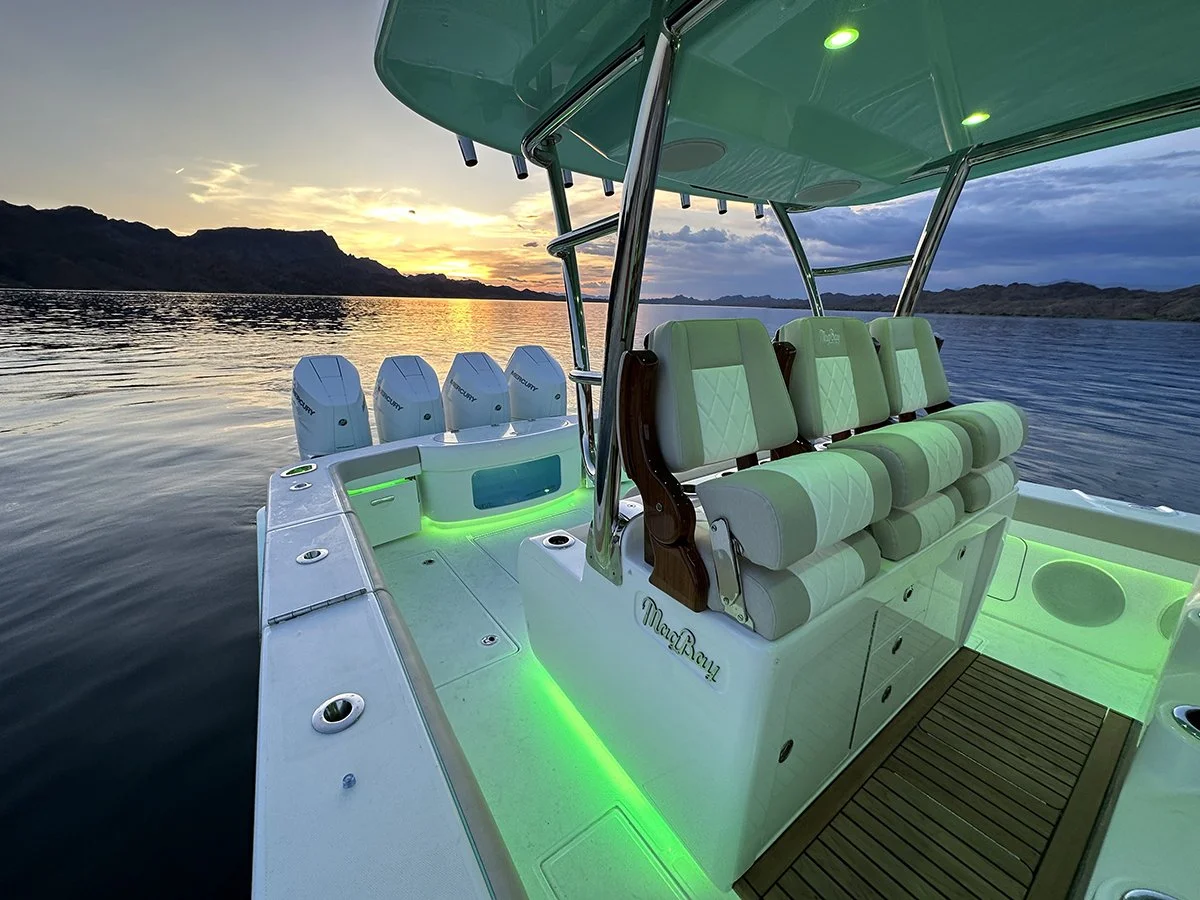

    • Aft Console With Triple Wide Release Marine Helm Seats and Aft Facing Mezzanine Seating

    • Mid Console with Triple Wide Release Marine Helm Chairs

    • Elevated Aft Console Helm Floor for Added Visibility

    • Slide Out Trash Can and Drawers on Aft Console

    • Two Dedicated Insulated Cockpit Fishboxes With Dedicated Macerator Pumps

    • Generous Aft Lazarette w/Seakeeper SK4 (Standard)

    • Outboard General Storage Lockers

    • Console Fiberglass Pod

    • Premium Upholstery Material Options

    • (6) Lithium Batteries

    • Full Victron Lithium Smart Controllers

    • Victron 5000 Watt Inverter/Charger

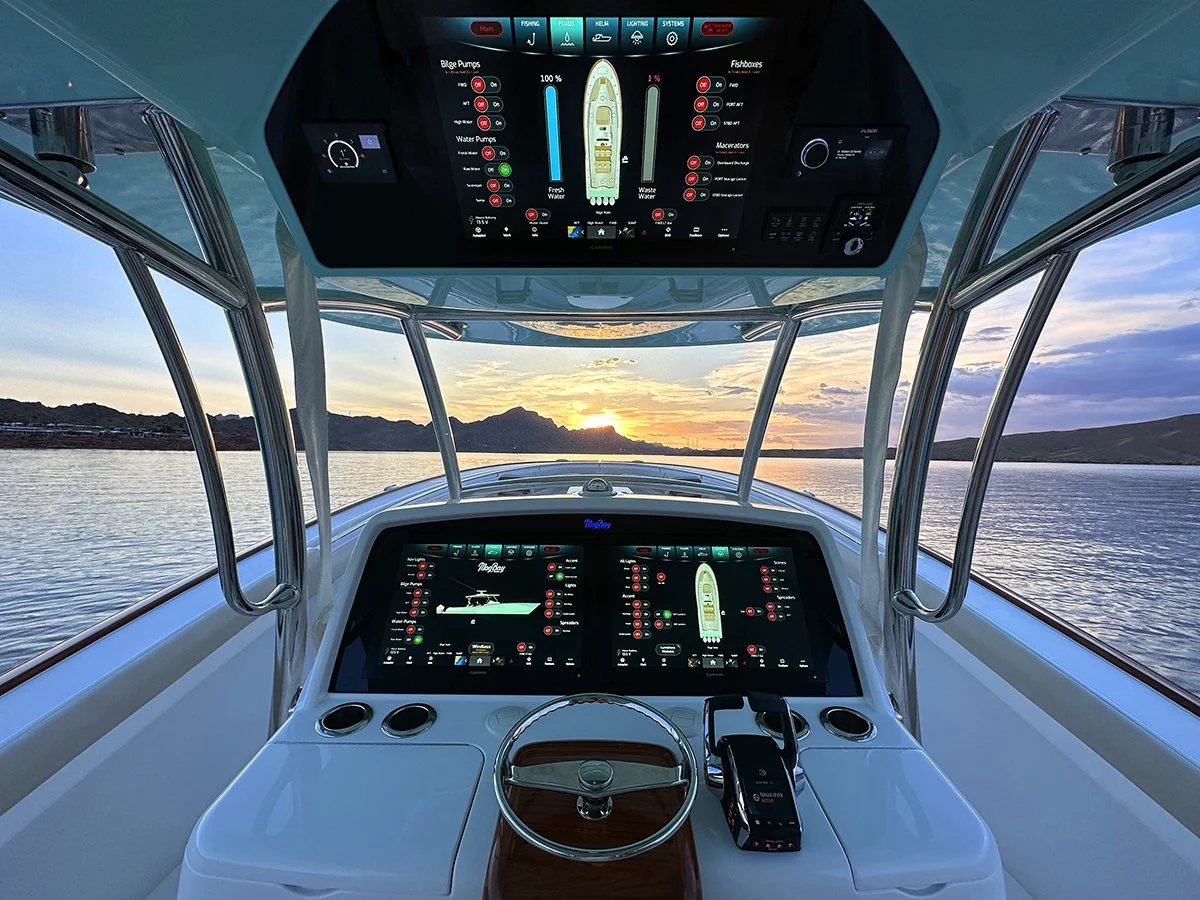

    • Garmin EmpirBus Digital Switching

    • All Wiring Throughout Boat Is Tinned Copper

    • All Wiring Has Heat Shrink Thermal Labels And Connectors

    • Electronic Steering With Joystick Control

    • 316 Stainless Steel Construction With Mirror Polished Welds.

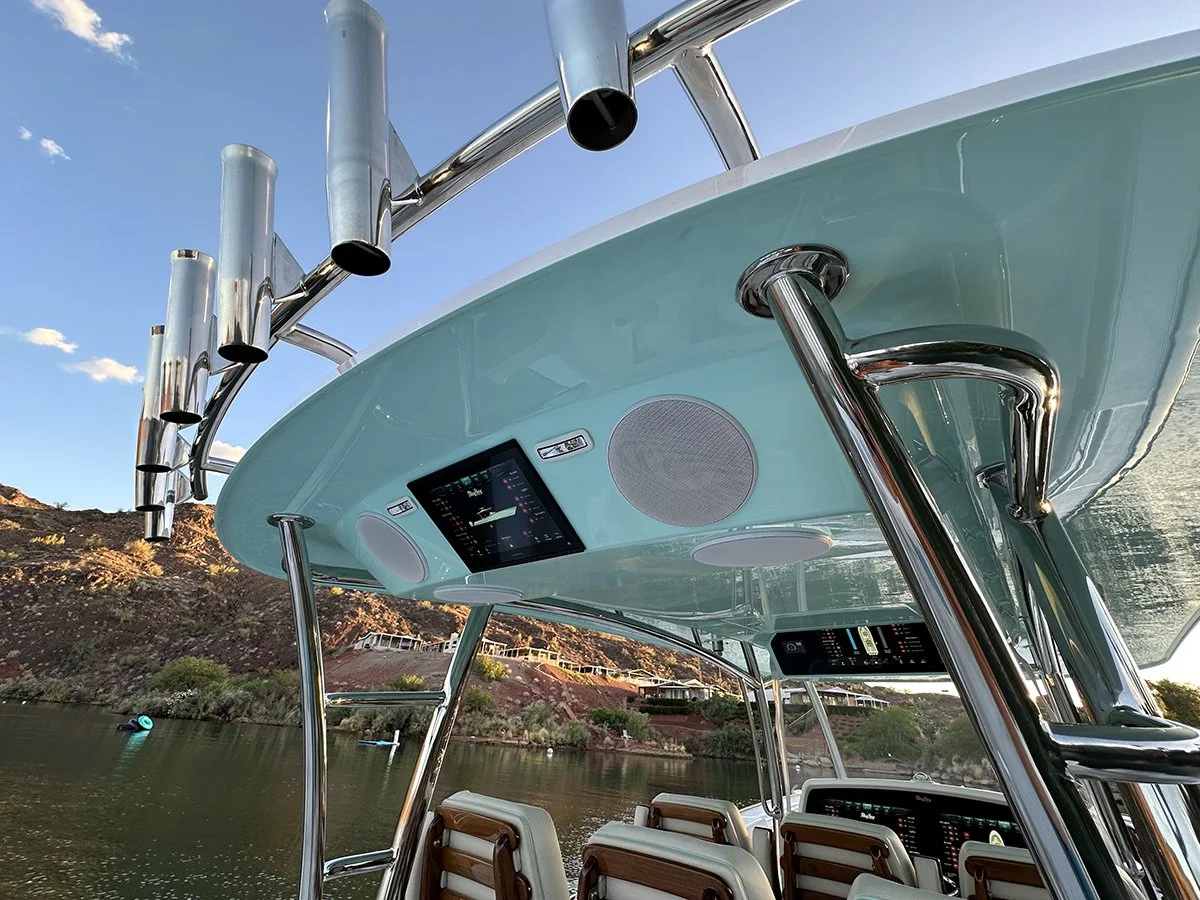

    • Oversized Fiberglass Hardtop

    • T-Top Molded In Electronics Box With Motor Display

    • Integrated VHF Mounts Into Backing Plates

    • Folding Anchor Light Controlled From Underside Of Hardtop

    • 2nm Lumitec Navigation Lights

    • Forward And Aft Lumishore Spreader Lights

    • 316 Stainless Piano Hinges

    • Premium Gemlux Cleats

    • Six Gemlux Bluewater Rod Holders Standard

    • Groco 316 Stainless Steel Ball Valves And Sea Cocks

    • Southco Latches And Door Handles

    • Ongaro Steering Wheel

    • Mate Series Cupholders

    • Custom 316 Stainless Side Door Hinges And Latches

    • Custom 316 Stainless Steel T-top Industry Exclusive

    • Muir Stainless Windlass w/Ultra Anchor316 Stainless Piano Hinges

    • Premium Gemlux Cleats

    • Six Gemlux Bluewater Rod Holders Standard

    • Groco 316 Stainless Steel Ball Valves And Sea Cocks

    • Southco Latches And Door Handles

    • Ongaro Steering Wheel

    • Mate Series Cupholders

    • Custom 316 Stainless Side Door Hinges And Latches

    • Custom 316 Stainless Steel T-top Industry Exclusive

    • Muir Stainless Windlass w/Ultra Anchor

AT A GLANCE

  • L.O.A. 43’ 2”

  • B.O.A. 12’

  • DRAFT 2’ 6”

  • FUEL: (3 Tanks) 645 Gal

  • WATER: 80 Gal

  • WASTE: 23 Gal

  • FISH BOX: 2100 Quarts

  • BAIT TANK: 75-Gal Transom

  • DEADRISE AT TRANSOM 24°

  • DISPLACEMENT: 19,280 Dry /24,000 Loaded

OPTIONS

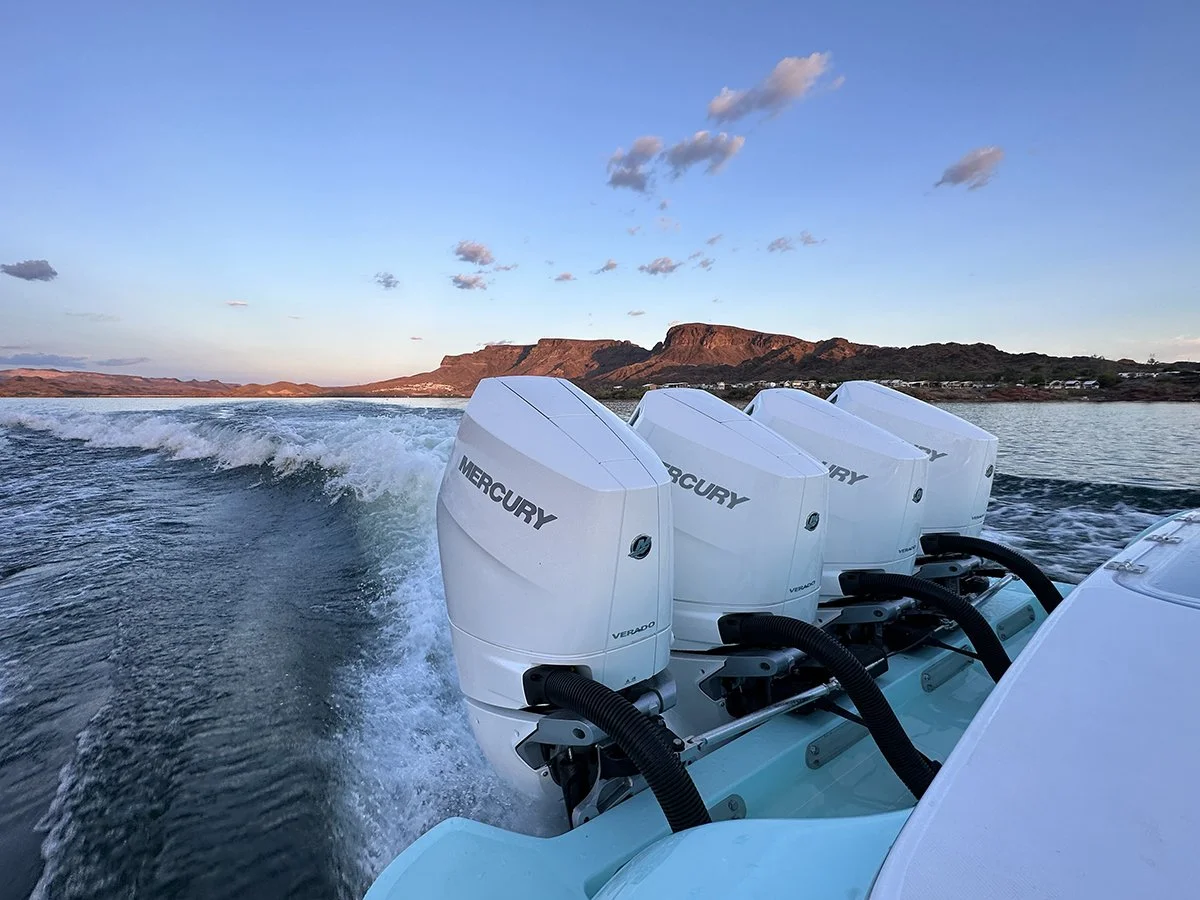

    • Twin Mercury Verado 600hp V12 Standard

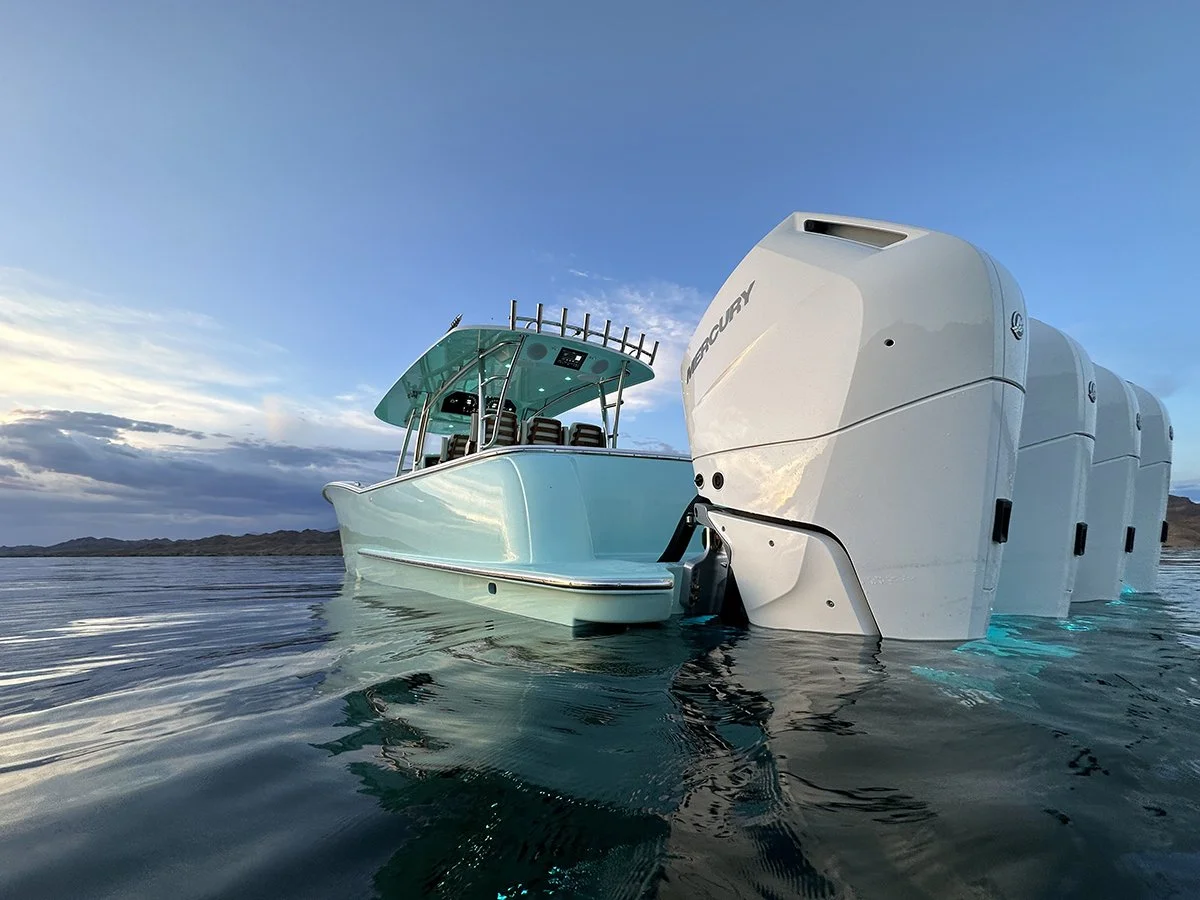

    • Quad Mercury Verado 400hp V10

    • Triple Mercury Verado 600hp V12

    • Color Change Lumishore Underwater Lights

    • Additional Lumishore Underwater Lights

    • Locker LED Lights (White)

    • Lumishore Deck Accent Lighting

    • Lumitec Razor LED Light Bars On Hardtop

    • Gemlux Outrigger Bases

    • Gemlux Carbon Outriggers

    • Additional Gemlux Rod Holders

    • Electric Reel Outlets 12V

    • Electric Teaser Reels In Hardtop

    • Clear Transom Livewell Lid

    • Tackle Tray Storage in Back Rest

    • Stainless Steel Rod Holder Rack (T-Top)

    • Flip-up Aft Seating

    • Wraparound Aft Seating in lieu of livewell

    • Diamond Stitching On Upholstery

    • Hull Color – Gelcoat

    • Underside Hardtop Color - Gelcoat

    • Hull Color – Awlgrip

    • Underside Hardtop Color - Awlgrip

    • Bottom Paint

    • Painted Boot Stripe

    • Removable Polycarbonate Console Windscreen

    • Solid Windshield for Helm

    • Fiberglass Bow Table

    • Chill Plate in Mezzanine Seating

    • Glass Dash Acrylic Backsplash On Dash

    • Helm Seating Module w/Bait Prep Station, Sink and Electric Grill (in lieu of standard mezzanine)

    • Air Conditioning Helm

    • Air Conditioning Cabin

    • Hot Water Heater and Console Shower

    • Refrigerator/Microwave in Cabin

    • Bow Towing Eye 1” Stainless

    • Faux Teak Cap Rail

    • Faux Teak Helm Pod

    • Helm and Bow Seating Teak Trim

    • Garmin Electronics Package

    • Full Bausch Tower
