THE MAG BAY 33CC

THE MAG BAY 33 CENTER CONSOLE

Since its original debut in 2015, the Mag Bay 33 CC has set the bar for quality and refinement in the center console marketplace, bringing you the perfect marriage of serious angling and unprecedented style. We’ve raised the bar for center consoles, transforming them from simple fishing platforms into vessels that showcase the yacht-quality finishes and meticulous craftsmanship that define Mag Bay Yachts.

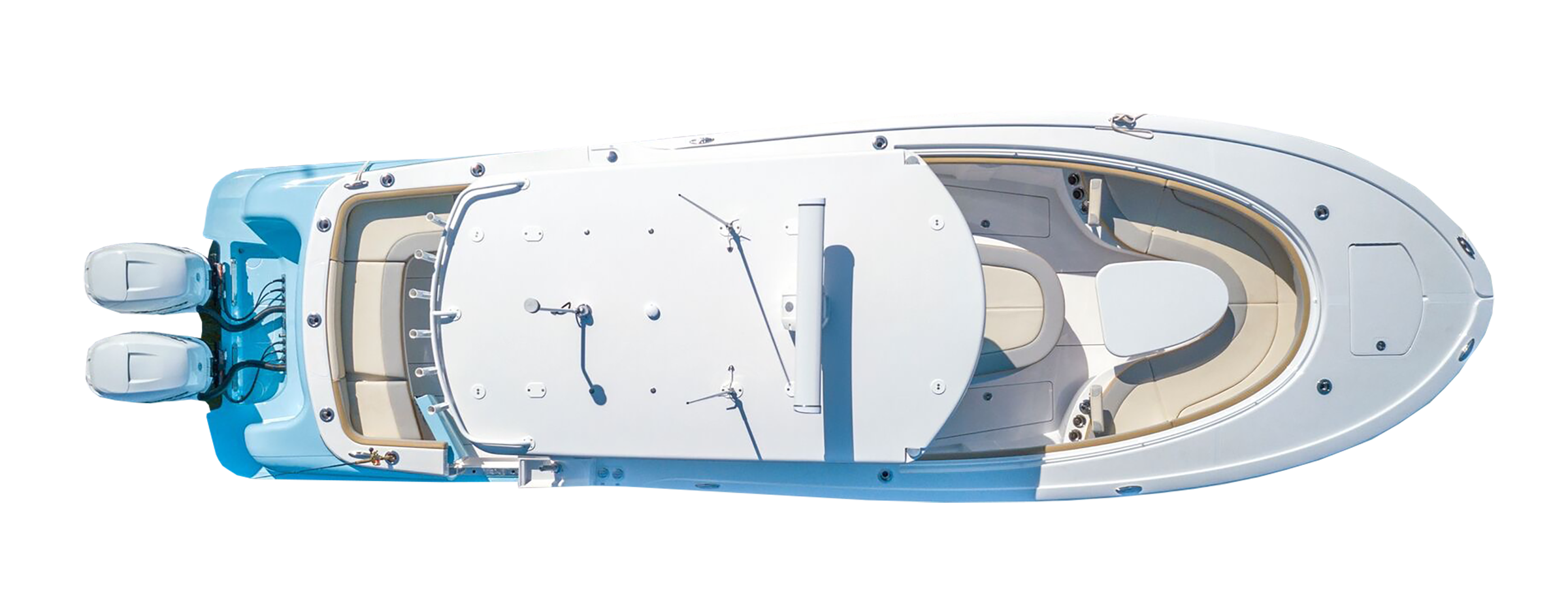

The layout of the Mag Bay 33 is well-thought-out, with plenty of deck space, comfortable seating, and high-end finishes throughout. Featuring premium navigation and electronics, industry-leading stainless steel fabrication and custom hardware, and performance to match her Michael Peters hull design, the Mag Bay 33 is the perfect blend of luxury and performance. Mercury Verado 300 hp V8 power is standard with options for Mercury 400 hp as well as Mercury Racing options.

For anglers, the boat is equipped with large fish boxes, rod holders, a standard pressurized 75-gallon live well, and plenty of tackle storage, making it a serious contender for offshore fishing. Alternatively, we have options for transom seating when cruising and family boating are the primary objectives. This blend of performance, functionality, and luxury makes the Mag Bay 33 CC a standout for the discerning buyer with an eye for detail and quality and appreciation for the ultimate in craftsmanship.

CONTACT US AND
GET YOURS TODAY!

STANDARD FEATURES

    • 100% Vinylester Resin Construction

    • Gurit® Cored Hullsides, Solid Fiberglass Bottom

    • Unique “Unibody” Transom

    • Triple Reinforced Hull-deck-liner Joint Throughout Entire Boat

    • Fiberglass Molded Stringer Grid System For Added Strength

    • Premium Proprietary Gelcoat UsedThroughout

    • 316 Stainless Steel Rubrail With Custom Hand Bent And
      Fit Ends

    • 316 Stainless Bow And Stern Eyes

    • Starboard Side Inward Swinging Side Door With Folding Gunnel Gate

    • Custom Made 316 Stainless Steel Hinges On Anchor Locker And Side Door

    • Integrated Transducer Pocket For 1kw Transducer

    • Industry Leading Fully Glassed And Gelcoated Liner To Deck Joints

    • Self-bailing Deck With Outboard Gutters

    • Integrated Hatch Drain System To Outboard Gutters

    • Molded Toe Rail

    • Diamond Pattern Nonskid

    • Custom 316 Stainless Steel Motor Plate

    • Two Outboard 94 Gallon ¼” Aluminum Fuel Tanks

    • One Central 150 Gallon ¼” Aluminum Fuel Tank

    • 38 Gallon Freshwater Tank With Deck Fill On Console

    • 13 Gallon Holding Tank With Deck And Overboard Discharge Ports

    • 75 Gallon Pressurized Aft Livewell

    • 70 Psi. 6gpm Saltwater Washdown Pump

    • 50 Psi. 4gpm Freshwater Washdown Pump

    • Dometic Electric Head With Freshwater Flush

    • Freshwater Sink Inside Console.

    • Forward And Aft Freshwater And Saltwater Washdown Spigots

    • Rule 2000gph Bilge Pumps In Aft Lazarette

    • Rule 1000gph Lo-profile Bilge Pump In Forward Console

    • Rule Float Switches

    • Jabsco Macerator Pumps For All Fish Boxes

    • Jabsco Macerator Pump For Head

    • Fiberglass Sea Chest In Aft Lazarette

    • Rule Tournament Bait Tank Pumps

    • All Thru Hulls And Ball Valves Are 316 Stainless Steel

    • Two In Deck Forward Storage Boxes

    • Oversized Above Deck Insulated Console Storage With Drains To Deck

    • Bow Seating With Large General Storage Compartments

    • Oversized Insulated In-deck Forward Fishbox With Dedicated Macerator Pump

    • Oversized Self-draining Anchor Locker With Sealed Forward Crash Bulkhead

    • Mirror Inside Console

    • Forward Sunpad Console With Above Deck Insulated Storage

    • Premium Upholstery Material Options

    • Aft Console With Integrated Sink, Tackle Storage And Dual Drawer Unit

    • Slide Out Frigid Rigid 85-quart Cooler

    • Two Dedicated Insulated Cockpit Fishboxes With Dedicated Macerator Pumps

    • Generous Aft Lazarette

    • Large Aft Storage For Fenders Or General Items

    • Outboard EPIRB And Fire Extinguisher Locker

    • Outboard General Storage Locker

    • Console Fiberglass Pod

    • Four Group 31 Batteries; Two House And Two Start All Wiring Throughout Boat Is Tinned Copper

    • All Wiring Has Heat Shrink Thermal Labels And Connectors

    • Blue Sea Systems Remote Battery Switches And Automatic Charge RelaysMastervolt Battery Charger With 30a Shore Power Connector And Cord

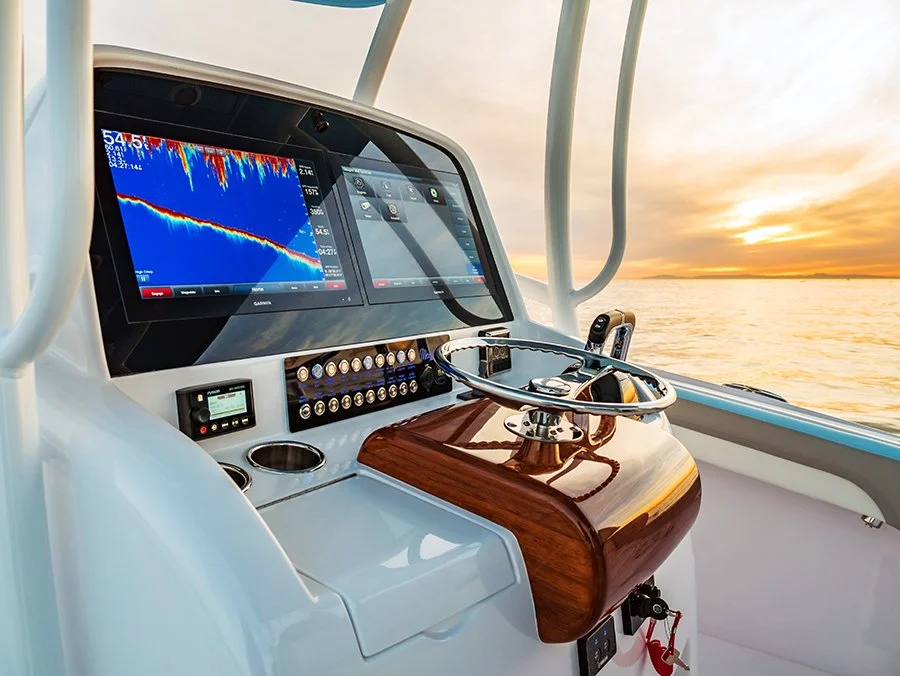

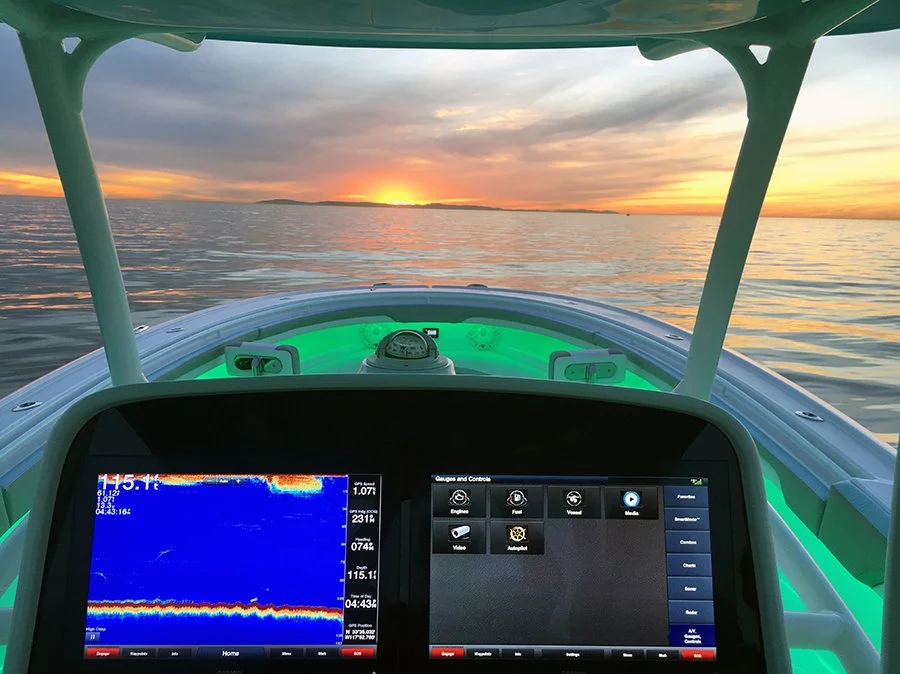

    • Stbd Console Panel With Dedicated Electronics Area

    • Electronic Steering With Joystick Capability

    • Mastervolt Battery Charger With 30a Shore Power Connector And Cord

    • Stbd Console Panel With Dedicated Electronics Area

    • Electronic Steering With Joystick Capability

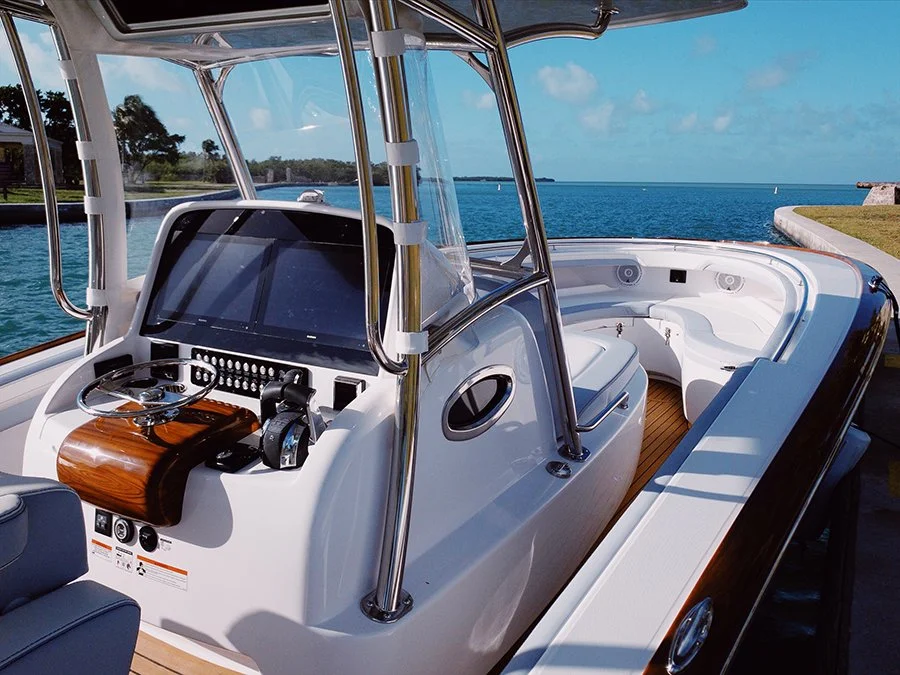

    • 316 Stainless Steel Construction With Mirror Polished Welds.

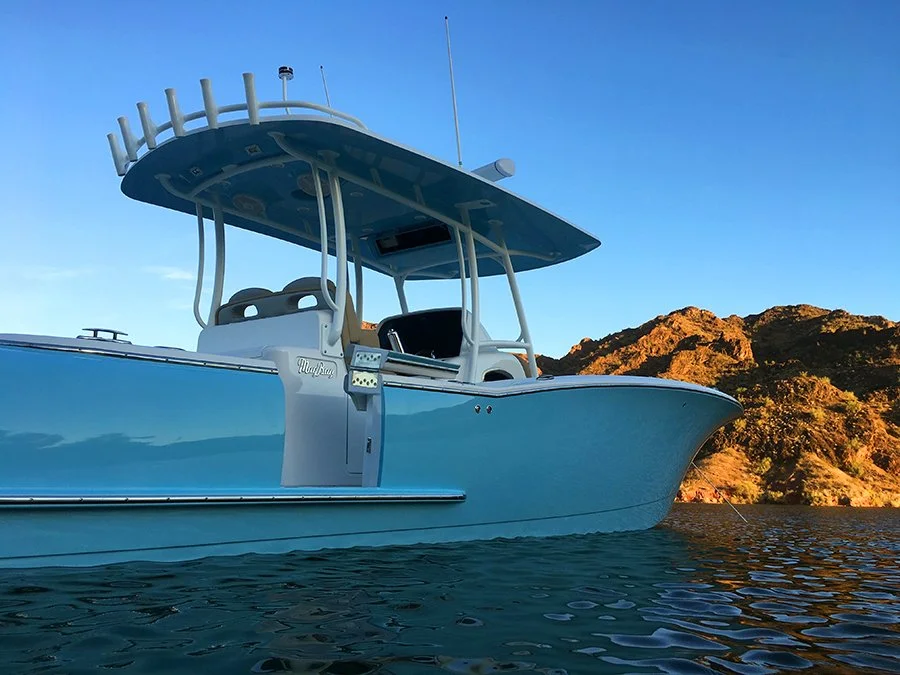

    • Oversized Fiberglass Hardtop

    • T-top Molded In Electronics Box With Motor Display

    • Integrated Vhf Mounts Into Backing Plates

    • Folding Anchor Light Controlled From Underside Of Hardtop

    • 2mn Lumitec Navigation Lights

    • Forward And Aft Lumitec Spreader Lights

    • Stainless Steel Rod Holder Rack Standard On Boats With Rear Livewell

    • 316 Stainless Piano Hinges

    • Premium Gemlux Cleats

    • Six Gemlux Bluewater Rod Holders Standard

    • Groco 316 Stainless Steel Ball Valves And Sea Cocks

    • Southco Latches And Door Handles

    • Ongaro Steering Wheel

    • Mate Series Cupholders

    • Custom 316 Stainless Side Door Hinges And Latches

    • Custom 316 Stainless Steel T-top Industry Exclusive

AT A GLANCE

  • FUEL (3 TANKS):  338 GAL

  • WATER:  38 GAL

  • WASTE: 13 GAL

  • FISH BOX:  1464 QUARTS

  • BAIT TANKS: 75 GAL TRANSOM

  • L.O.A.:  33’ 6”

  • B.O.A.:  10’

  • DRAFT :  2.0’

  • DEADRISE AT TRANSOM:  22°

  • DISPLACEMENT:  10,200 DRY, 13,500 LOADED

OPTIONS

    • Twin Mercury Verado 300hp V8 Standard

    • Twin Mercury Verado 400hp V10

    • Twin Mercury Verado 400hp V10

    • Bow Thruster

    • 360 Joystick Steering

    • Mercury Moving Prop Alert System

    • Color Change Lumishore Underwater Lights (Pair)

    • Additional Lumishore Underwater Lights (Each)

    • Lumishore Lumi-link Lighting Controller

    • Locker LED Lights (White)

    • Lumitec Razor LED Lightbars On Hardtop

    • Gemlux Outrigger Bases

    • Gemlux Carbon Outriggers

    • Side Locker Fishing Rod Storage

    • Teaser Reels In Hardtop

    • Additional Gem Rod Holders

    • Electric Reel Outlets

    • Hull Color – Gelcoat

    • Bottom Paint

    • Painted Boot Stripe

    • Underside Hardtop Color - Gelcoat

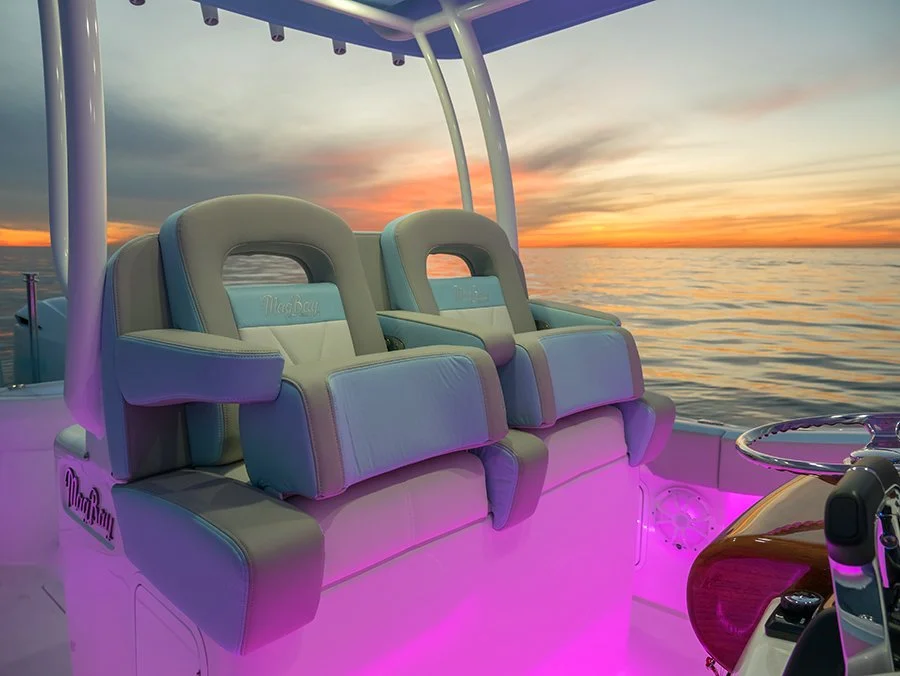

    • Release Marine Teak Ladder Back Helm Seating

    • Release Marine Teak Forward Backrests

    • Aft Jump Seats With SS Brackets

    • Aft Bench Style Seating/Delete Livewell

    • Folding Footrest On Aft Console

    • Console Windscreen

    • Fiberglass Bow Table

    • S.S. Anchor Windlass System

    • Large Cleat Upgrade

    • Diamond Stitching On Upholstery

    • Glass Dash Acrylic Backsplash On Dash

    • Hull Color – Gelcoat

    • Underside Hardtop Color - Gelcoat

    • Hull Color – Awlgrip

    • Underside Hardtop Color - Awlgrip

    • Teak Foot Pad At Helm

    • Bow Towing Eye 1” Stainless

    • Faux Teak Helm Pod

    • Faux Teak Cap Rail

    • Electronics

    • Seakeeper SK3 Gyro Stabilizer

    • Sport Trail Triple Axle Aluminum Trailer
