THE MAG BAY 38CC

THE MAG BAY 38 CENTER CONSOLE

2024 Fort Lauderdale International Winner of “Best in Show”

The Mag Bay 38 Center Console represents a seamless blend of luxury, innovation, and performance, and sets a new standard in its class. Built for avid offshore anglers and casual boaters alike, the Mag Bay 38 CC showcases a host of advanced features designed for optimal handling, comfort, and fishing capabilities and bridges the gap between our current model lineup.

Combining tournament level fishability with quality that is unmatched, the Mag Bay 38 sets a new bar in the sub 40’ Center Console category. Step aboard and come see for yourself why the Mag Bay 38 claimed the coveted 2024 FLIBS “Best in Show” at the biggest stage in boating.

Whether chasing pelagic species offshore or cruising with family and friends, the Mag Bay 38 Center Console offers the versatility and features needed to perform in any environment. Its spacious (yet optional) forward seating, large fiberglass t-top (featuring yacht quality stainless steel fabrication), and standard Release Marine seating package ensure comfort on extended trips. Abundant storage, fishing amenities, and high performing design cater to those who demand the best from their time on the water.

CONTACT US AND
GET YOURS TODAY!

STANDARD FEATURES

    • 100% Vinylester Resin Construction

    • Gurit® Cored Hullsides, Solid Fiberglass Bottom

    • Unique “Unibody” Transom

    • Triple Reinforced Hull-Deck-Liner Joint Throughout Entire Boat

    • Fiberglass Molded Stringer Grid System For Added Strength

    • Premium Proprietary Gelcoat Used Throughout

    • 316 Stainless Steel Rubrail

    • 316 Stainless Bow And Stern Eyes

    • Starboard Side Inward Swinging Side Door With Folding Gunnel Gate

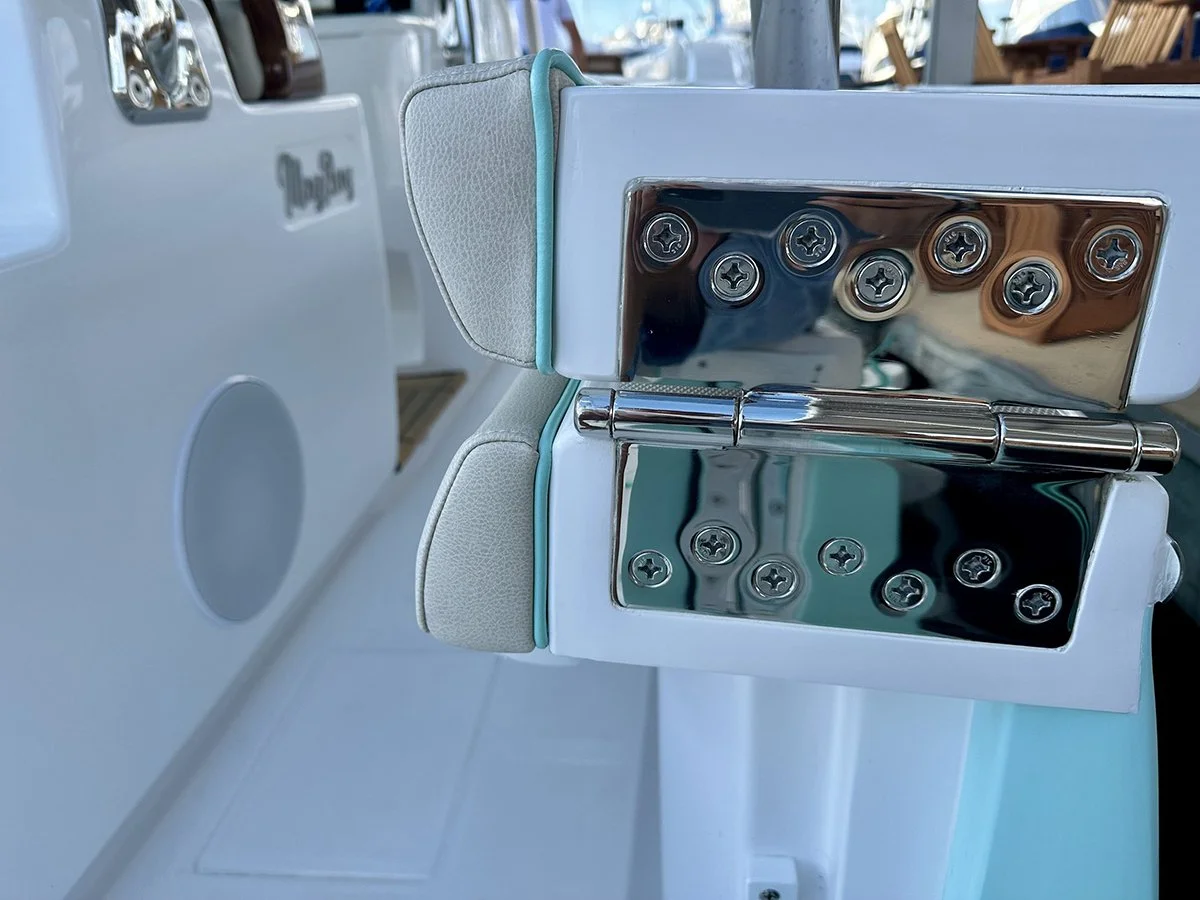

    • Custom Made 316 Stainless Steel Hinges On Anchor Locker And Side Door

    • Integrated Transducer Pocket For 2kw Transducer

    • Industry Leading Fully Glassed And Gelcoated Liner To Deck Joints

    • Self-bailing Deck With Outboard Gutters

    • Integrated Hatch Drain System To Outboard Gutters

    • Molded Toe Rail

    • Diamond Pattern Nonskid

    • Custom 316 Stainless Steel Motor Plate

    • Two Outboard 115 Gallon ¼” Aluminum Fuel Tanks

    • One Central 365 Gallon ¼” Aluminum Fuel Tank

    • 65 Gallon Freshwater Tank With Deck Fill On Console

    • 18 Gallon Holding Tank With Deck And Overboard Discharge Ports

    • 75 Gallon Pressurized Aft Livewell

    • 70 Psi. 6gpm Saltwater Washdown Pump

    • 50 Psi. 4gpm Freshwater Washdown Pump

    • Dometic Masterflush Electric Head With Freshwater Flush

    • Freshwater Sink Inside Console

    • Forward And Aft Freshwater And Saltwater Washdown Spigots

    • Dual Rule 2000gph Bilge Pumps In Aft Lazarette

    • Rule 1000gph Lo-profile Bilge Pump In Forward Console

    • Rule Float Switches

    • Macerator Pumps For All Fish Boxes

    • Macerator Pump For Head

    • Dual Hooker Electric Sea Chest In Aft Lazarette

    • Hooker Electric Variable Speed Bait Tank Pump

    • Integrated Engine Flush From Reverso

    • All Thru Hulls And Ball Valves Are 316 Stainless Steel

    • Two In-Deck Forward Fish Boxes

    • Oversized Above Deck Insulated Console Storage With Drains To Deck

    • Oversized Insulated In-deck Forward Fishbox With Dedicated Macerator Pump

    • Oversized Self-draining Anchor Locker With Sealed Forward Crash Bulkhead

    • Mirror Inside Console

    • Forward Sunpad Console With Above Deck Insulated Storage

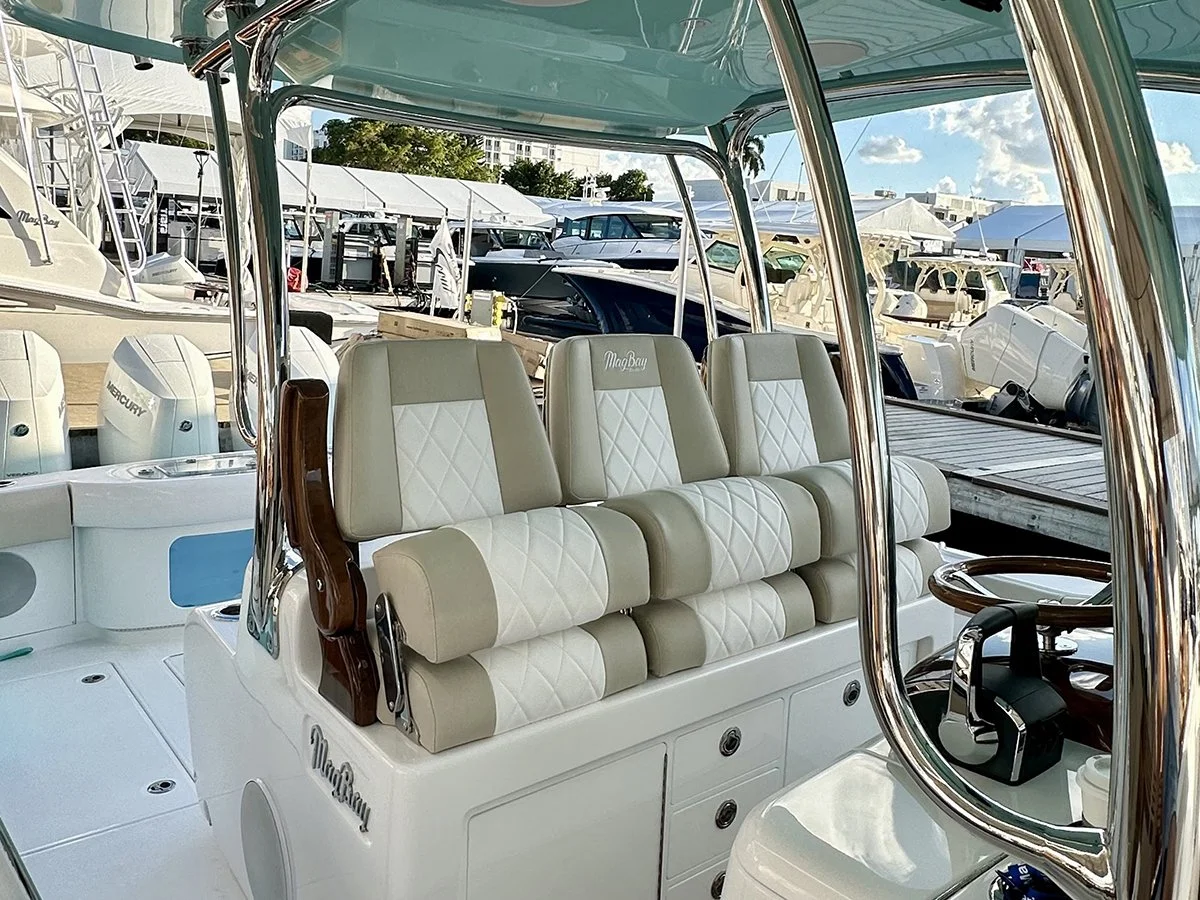

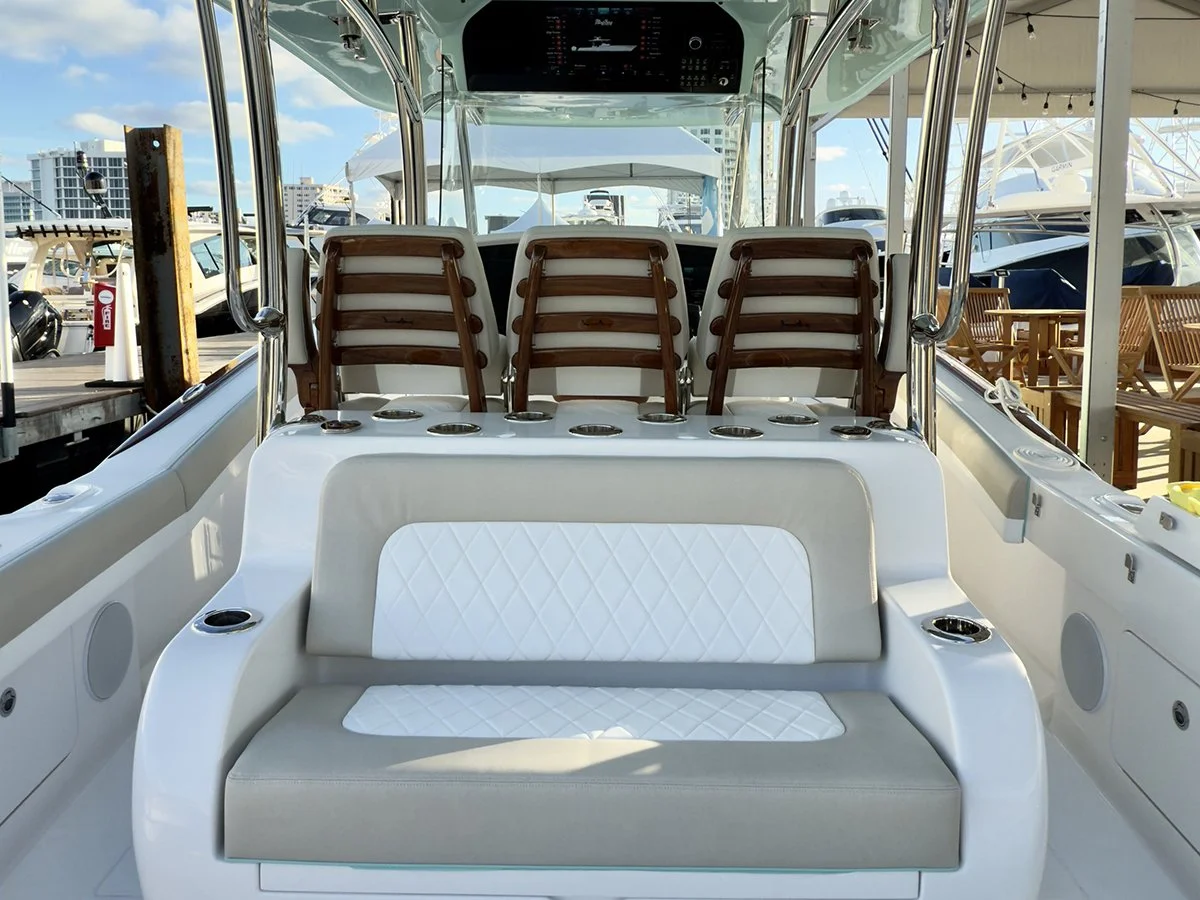

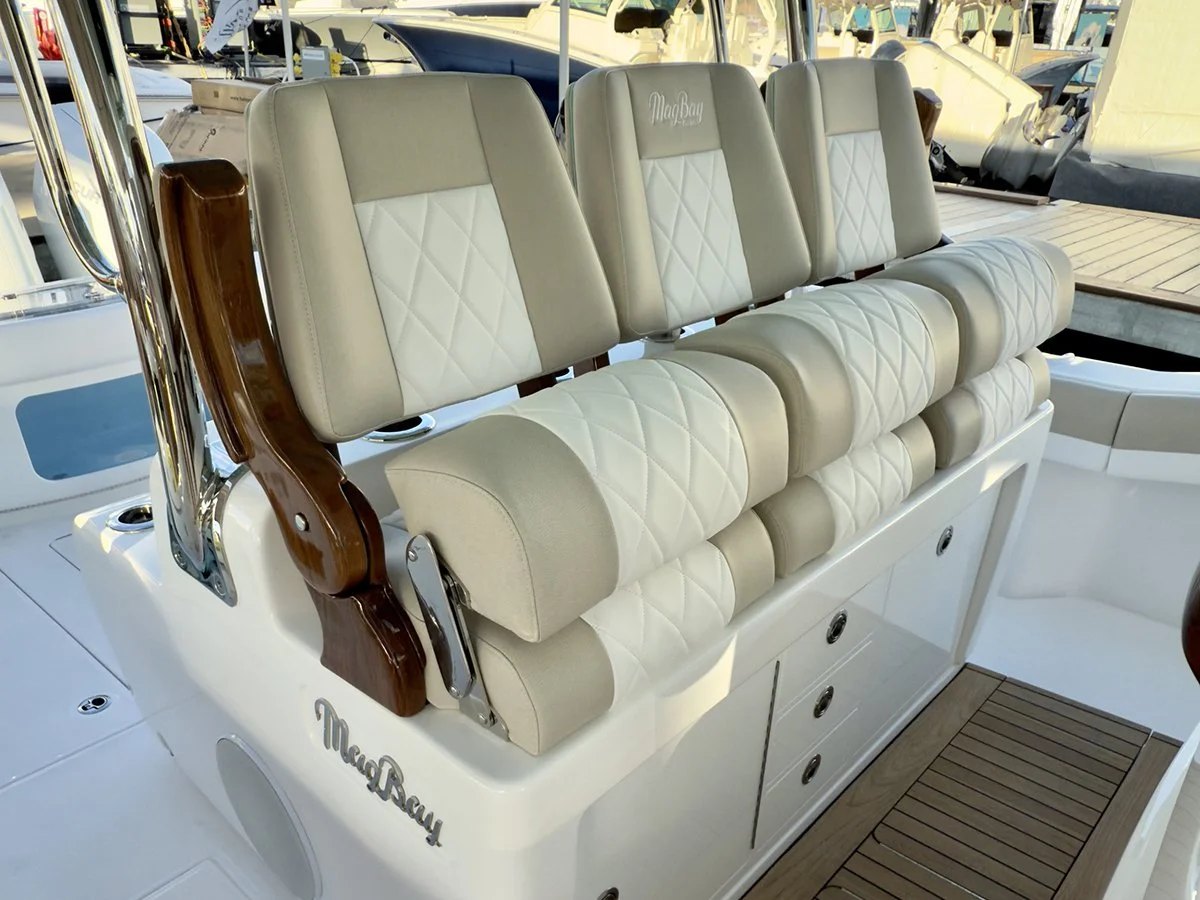

    • Aft Console With Triple Wide Release Marine Helm Seats and Aft Facing Mezzanine Seating

    • Slide Out Trash Can and Drawers

    • Two Dedicated Insulated Cockpit Fishboxes With Dedicated Macerator Pumps

    • Generous Aft Lazarette

    • Outboard General Storage Lockers

    • Console Fiberglass Pod

    • Premium Upholstery Material Options

    • (5) Lithium Batteries

    • Full Victron Lithium Smart Controllers

    • Victron 5000 Watt Inverter/Charger

    • Garmin EmpirBus Digital Switching

    • All Wiring Throughout Boat Is Tinned Copper

    • All Wiring Has Heat Shrink Thermal Labels And Connectors

    • Electronic Steering With Joystick Control

    • 316 Stainless Steel Construction With Mirror Polished Welds.

    • Oversized Fiberglass Hardtop

    • T-Top Molded In Electronics Box With Motor Display

    • Integrated VHF Mounts Into Backing Plates

    • Folding Anchor Light Controlled From Underside Of Hardtop

    • 2nm Lumitec Navigation Lights

    • Forward And Aft Lumishore Spreader Lights

    • 316 Stainless Piano Hinges

    • Premium Gemlux Cleats

    • Six Gemlux Bluewater Rod Holders Standard

    • Groco 316 Stainless Steel Ball Valves And Sea Cocks

    • Southco Latches And Door Handles

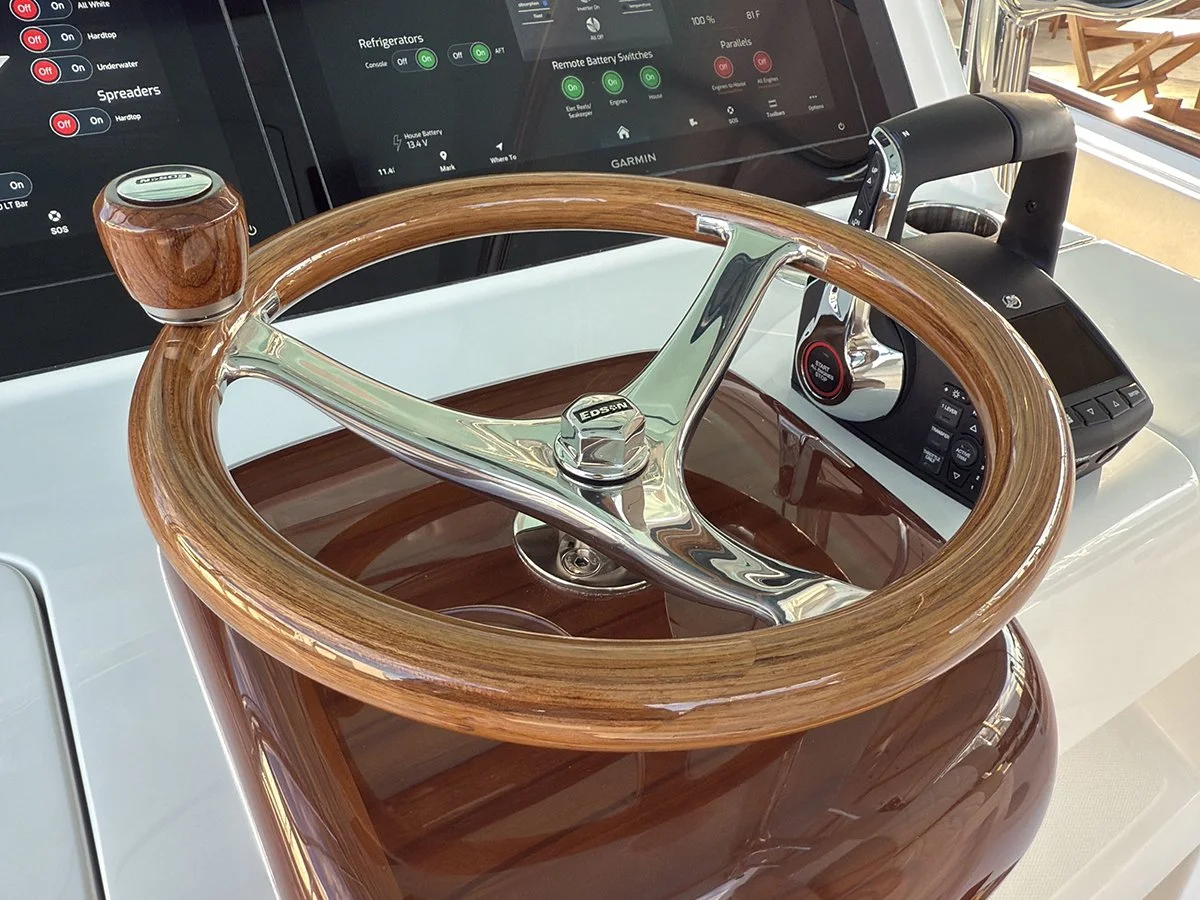

    • Ongaro Steering Wheel

    • Mate Series Cupholders

    • Custom 316 Stainless Side Door Hinges And Latches

    • Custom 316 Stainless Steel T-top Industry Exclusive

    • Muir Stainless Windlass w/Ultra Anchor

AT A GLANCE

  • FUEL (3 TANKS):  595 GAL

  • WATER:  65 GAL

  • WASTE: 18 GAL

  • FISH BOX:  2100 QUARTS

  • LIVEWELL:  75 GAL TRANSOM

  • L.O.A.: 38’ 6”

  • B.O.A.: 11’

  • DRAFT: 2.6’

  • DEADRISE AT TRANSOM: 24°

  • DISPLACEMENT:  15,880 DRY, 20,000 LOADED

OPTIONS

    • Triple Mercury Verado 300hp V8 Standard

    • Triple Mercury Verado 400hp V10

    • Twin Mercury Verado 600hp V12

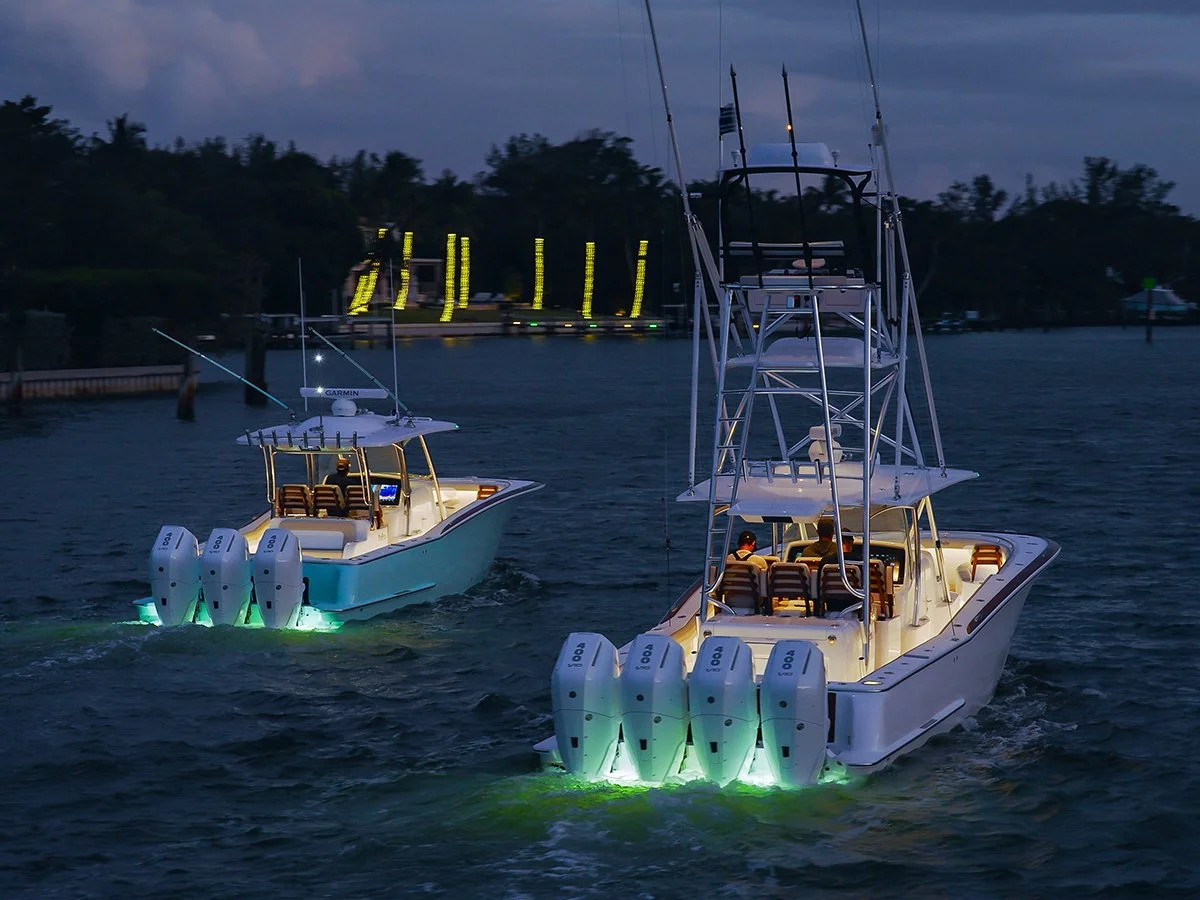

    • Color Change Lumishore Underwater Lights

    • Additional Lumishore Underwater Lights

    • Locker LED Lights (White)

    • Lumishore Deck Accent Lighting

    • Lumitec Razor LED Light Bar On Hardtop

    • Gemlux Outrigger Bases

    • Gemlux Carbon Outriggers

    • Additional Gemlux Rod Holders

    • Electric Reel Outlets 12V

    • Electric Teaser Reels In Hardtop

    • Clear Transom Livewell Lid

    • Tackle Tray Storage in Back Rest

    • Stainless Steel Rod Holder Rack (T-Top)

    • Flip-up Aft Seating

    • Wraparound Aft Seating in lieu of livewell

    • Diamond Stitching On Upholstery

    • Forward Seating w/Release Marine Backrests

    • Hull Color – Gelcoat

    • Underside Hardtop Color - Gelcoat

    • Hull Color – Awlgrip

    • Underside Hardtop Color - Awlgrip

    • Bottom Paint

    • Painted Boot Stripe

    • Removable Polycarbonate Console Windscreen

    • Solid Windshield for Helm

    • Fiberglass Bow Table

    • Chill Plate in Mezzanine Seating

    • Glass Dash Acrylic Backsplash On Dash

    • Helm Seating Module w/Bait Prep Station, Sink and Electric Grill (in lieu of standard mezzanine)

    • Air Conditioning Cabin

    • Refrigerator/Microwave in Cabin

    • Bow Towing Eye 1” Stainless

    • Seakeeper SK3

    • Faux Teak Cap Rail

    • Faux Teak Helm Pod

    • Helm and Bow Seating Teak Trim

    • Garmin Electronics Package
